2024 Model Specifications*

Price = $115,000 Rolling Chassis (no powertrain) or $140,000 Turn Key

Estimated Performance Specs

-0 to 60mph = 3.0sec

-Top speed = 165mph

-Lateral(street tires)  = 1.2g

Width: 80 inches

Length: 156 inches

Height: 44 inches

Wheelbase: 103 inches

Curb Weight: 2000 pounds

Pounds Per Horsepower: 4.7 lb/hp (’14 Corvette = 7.3. ’14 Porsche 911 = 7.7)

Weight Distribution: 40% (f)  /  60% (r)

Engine

-Type: GM Performance Parts LS3 E-Rod. Naturally aspirated V8. (CARB EO # D-126-30)

-Displacement: 6.2L

-Cylinders: 8

-Maximum Power: 430 hp at 5900 rpm

-Maximum Torque: 424 ft-lb

-Engine Max RPM: 6600 rpm

-Lubrication System: Wet sump. baffled oil pan.

-Exhaust: GM manifolds, catalytic converters, custom dual mufflers

-Recommended Fuel: 91 Octane

-Engine Management: GM Performance controller

-Fuel System Construction: Custom alloy fabrication with internal baffles and collector system

-Capacity: 13 gallons

Gearbox & Driveline

-Model: Porsche G96 Transaxle

-Type: 6 speed syncromesh

-Gear Selection: Cable

Suspension Type front/rear

-Adjustable pushrod, rising rate bell cranks, twin wishbone, shim adjustable camber

-Chromoly tube twin wishbone

-Uprights: Ultra-light, billet aluminum uprights

-Dampers: Nitron Compression & rebound adjustable

Construction

-Body Type: Lightweight composite

-Chassis: TIG welded Chromoly tube

-Windshield: DOT Safety glass with wiper and fluid reservoir

Brakes

-Calipers: Wilwood – Forged, Radial 4 Piston (F&R)

-Discs: Girodisc 12.9” floating, ventilated discs, slotted, billet hats

-Master Cylinder: Pedal box-mounted, dual with bias adjustment knob in-cabin

-Pedal Box: Adjustable, billet, floor-mounted

-Emergency Brake: Wilwood caliper and hand operated

Wheel & Tires:

-HRE Forged alloy 17”x 8” (Front), 18”x10.5” (Rear)

-Toyo R888R 235/40 R17 (Front),  315/30 R18 (Rear)

Interior

-Seats: Steel ergonomic design

-Trim: Water resistant leather, memory foam padding

-Steering Wheel: Momo 310mm diameter , quick release hub

-Seat Belts: Schroth Enduro 6pt safety restraint system

-Fire Extinguisher: Safecraft 2.5lb Halon, hand-held

-Dash: AiM MXS with data logging

Lights

 -Front: Hella: Bi-Xenon headlights, LED turn signals

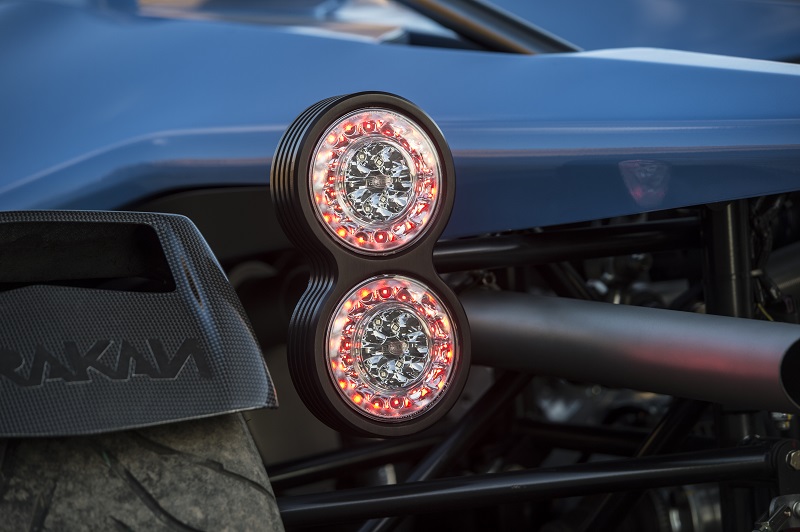

-Rear: Hella: LED taillights & turn signals

-Other: Hella: LED Reverse lamp, LED Rear Fog lights

*Vehicle specification is subject to minor changes before delivery

Options:

Several upgrades are under development.

1.       Aero package – front & rear wings

2. Triple- Adj Dampers

Future Options:

Several upgrades are under development.  Including a future model: Drakan Speedster

1.       Carbon ceramic brakes

2.       Dry sump

3.       Data acquisition + Integrated video

4.       Sequential gearbox + paddleshift
